It imparts the knowledge about characteristics and behavior of the DC and AC Machines. Well established with all kinds of motors, generators, transformers and latest Drives. This is the core lab for the Electrical Engineering branch and the subsidiary for ECE, Computer Science, Civil and Mechanical branches.

Lab Incharge: Dr. M. John Bosco, Assistant Professor

Lab Assistant: Mr. T. Xavier Ugin

Name of the Important Equipments:

• D.C. Shunt motor
• D.C. Series motor
• D.C. Compound motor
• D.C. Shunt motor coupled D.C. Shunt generator
• D.C. Shunt motor coupled D.C. Series generator
• D.C. Shunt motor coupled D.C. compound generator
• Single phase induction motor
• Three phase slip ring induction motor
• Three-phase squirrel cage induction motor
• Dynamic cut model motor
• Three-phase synchronous motor
• Three-phase synchronous motor (pony type)
• D.C. Shunt motor coupled with Alternator (salient)
• D.C. Shunt motor coupled with alternator (cylindrical)
• D.C. Shunt motor coupled with alternator (single-phase)
• D.C. Shunt motor coupled with an induction generator
• Single phase autotransformer
• Three-phase autotransformer
• Single phase transformer
• Scott connection transformer
• Three-phase transformer
• Three-phase resistive, inductive, capacitive loading banks
• Single phase resistive loading bank
• Synchronizing panel
• Rectifiers

It facilitates the study of control systems and its components along with all types of transducers. It also provides PC based study of Instrumentation and Control Systems using LabVIEW package and MATLAB software to undergo the experiments like open loop and closed loop system.

Lab Incharge: Dr. M. Germin Nisha, Associate Professor

Lab Assistant: Mr. J. Fabiyan Raj

Name of the Important Equipments:

• D.C Position control
• PID control System
• LVDT
• Strain Gauge
• Synchronous transmitter
• Closed-loop system with two controller unit
• Lead lag network simulator
• Embedded trainer kit
• Non-linear control System
• DSO, LCR Meter
• Clamp meter
• AC Servo motor Speed-Torque kit
• Magnetic amplifier kit
• RTD, Thermocouple, Tacho generator
• Analog/Digital trainer
• Phase sequence and power factor meter
• Kelvin, Maxwell, Schering, Wheatstone bridges
• Torque and pressure transducers
• Iron loss measurement setup
• 8085 Microprocessor trainer
• ELVIS
• Computers
• RTD Thermocouple with 150° C withstand
• Water level controller

It consists of different kinds of equipments, devices and ICs to study about the characteristics of electronics and related topics. The lab is well equipped with all the power electronic converters, DSP and FPGA based DC and AC Drives, Digital Integrated kits, Power supplies and Microprocessor and Microcontroller kits of 8 bit and 16 bits type.

Lab Incharge: Mr. V. Jesus Bobin, Assistant Professor

Lab Assistant: Mr. S. Benziher

Name of the Important Equipments:

• Servo Stabilizer
• Thyristor based single phase inverter
• Parallel trainer
• Cyclo converter firing circuit
• SCR ring counter
• Single phase thyristor control trainer for DC Motor
• Three phase thyristor control trainer for DC Motor
• Single phase converter trainer firing circuit
• Half & fully controlled single phase rectifier
• AC power controller
• IGBT Chopper kit
• PWM Inverter
• Commutation chopper
• Zero voltage switching kit
• Electrical circuit teaching console (RLC circuit kit)
• SCR Three phase fully controlled converter
• DC Motor speed control unit using thyristor
• SCR- Characteristics
• MOSFET Characteristics
• IGBT Characteristics
• Transient characteristics of SCR
• Transient characteristics of MOSFET
• MOSFET Based step up/down chopper
• IGBT Based three phase PWM Inverter
• Isolation transformer
• Auto transformer
• LCR Meter
• Earth tester
• Tong tester

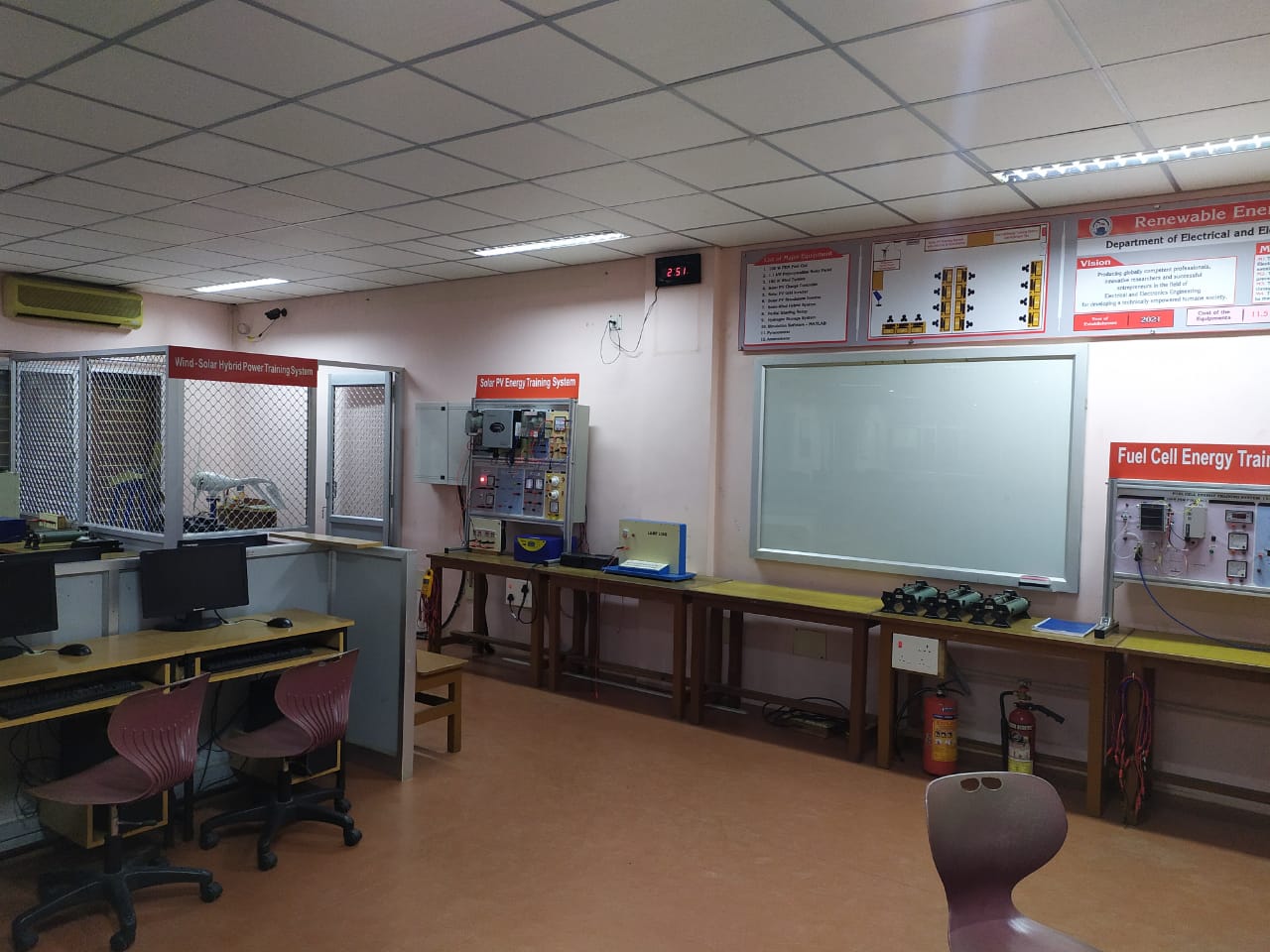

This lab imparts knowledge about the importance of renewable energy sources like solar, wind and hydrogen fuel. The electrical power is generated and observed in real-time by using various renewable energy setups like PV system, Wind energy system and Fuel cell system.

Lab Incharge: Mr. S. S. Selva Pradeep, Assistant Professor

Lab Assistant: Mr. Y. Sahaya Glitus

Name of the Important Equipments:

• Photovoltaic Panels (100W, 24V)
• Photovoltaic Panels (1KW, 24V)
• PV Emulator
• Micro wind energy generator module
• Fuel cell
• Solar-wind hybrid system

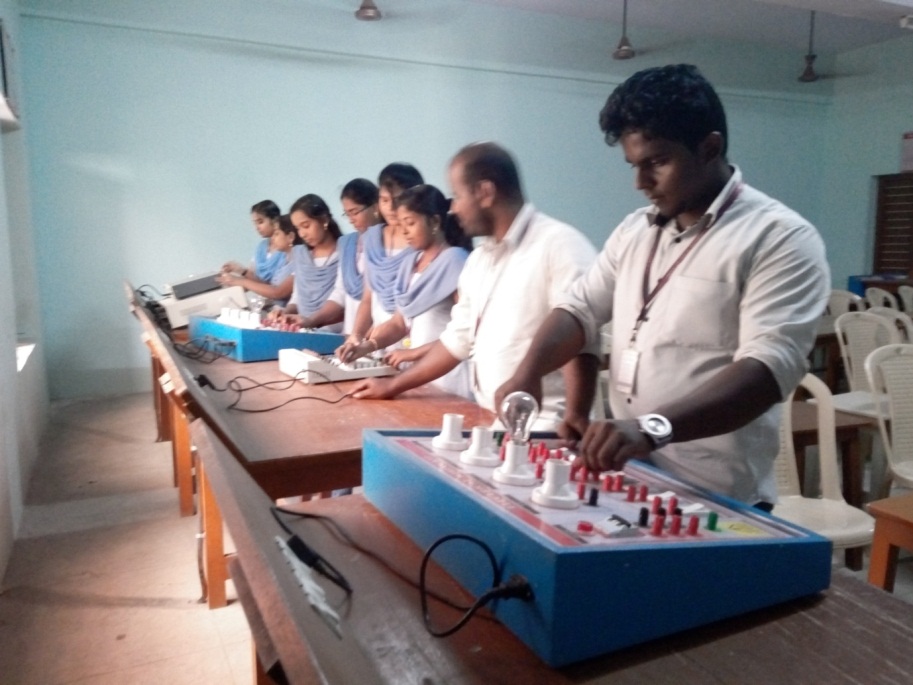

Electrical workshop is well equipped to give good exposure to the students and enhance their knowledge on the fundamentals of Electrical and Electronics. The laboratory is well equipped and earthed to provide protection and safety to the students and faculty members. Fire extinguishers and breakers are provided to avoid any mishaps. Well ventilated and illuminated facilities are available.

Lab Incharge: Dr. A. Darwin Jose Raju, Associate Professor

Lab Assistant: Mr. J. Fabiyan Raj

Name of the Important Equipments:

• Residential House wiring setup for energy measurement
• Fluorescent lamp wiring trainer kit
• Staircase wiring trainer kit
• Megger
• Soldering guns
• Multimeters
• Electronic components
• Iron box
• Ceiling fan

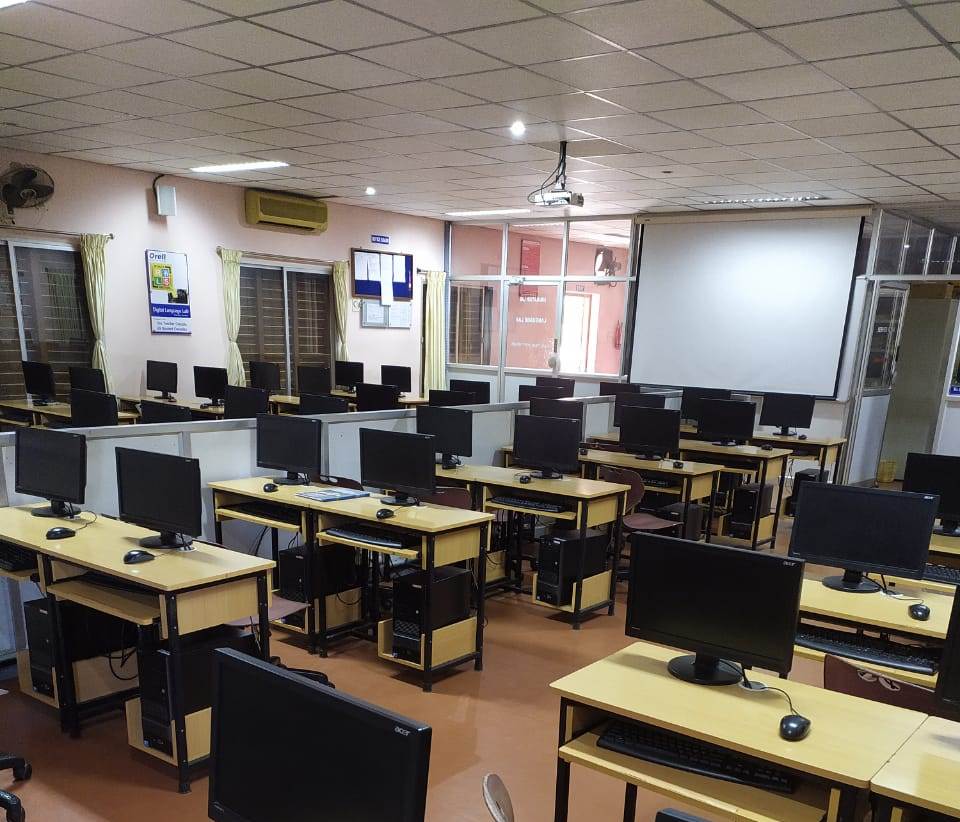

The simulation Laboratory provides Computer based study of power system, control systems and power electronics using latest simulation packages like ETAP, MATLAB, MULTISIM, ORCAD, PSPICE, LABVIEW etc. Internet connectivity was provided for all students and staff.

Lab Incharge: Mr. S. S. Selva Pradeep, Assistant Professor

Lab Assistant: Mr. Y. Sahaya Glitus

Name of the Important Equipments:

• Desktop Computers
• MATLAB
• SciLab
• ETAP
• PSCAD
• Multisim
• ORCAD
• PSPICE
• LABVIEW
